Hyundai Motor Group: IONIQ
EV Charging Experience
#EV Charging Stations #User Experience #Mobility
Role
UX Research | UX Design | Architectural Design
Team
1 Architecture & UX Designer,
6 Architectural Designers
Timeline
February 2024 ~ July 2024
This project aims to derive unique selling points through research for HYUNDAI's new EV Charging Stations and improve the EV charging user experience both in physical (architectural) and digital (app) environments.
Process
Off-Site Research
On-Site Research
Interface Design
Define Problems & Solutions
Architectural Design
Sketch Design
Lo-fi & Hi-fi Wireframes
Iteration
Observation
User Interview & Survey
Documentation
Typology Categorization
Research Insights
Persona Derivation
Pain Point & Need Synthesis
Design Guideline
Conditions for Solutions
Draft Prototyping
Market Analysis
Competitor Analysis
EV Station Case Analysis
Research Subject Focus
On-Site Research Planning
Architectural Plan Sketch
3D Modeling & Rendering
overview
Highlights
On-site Research

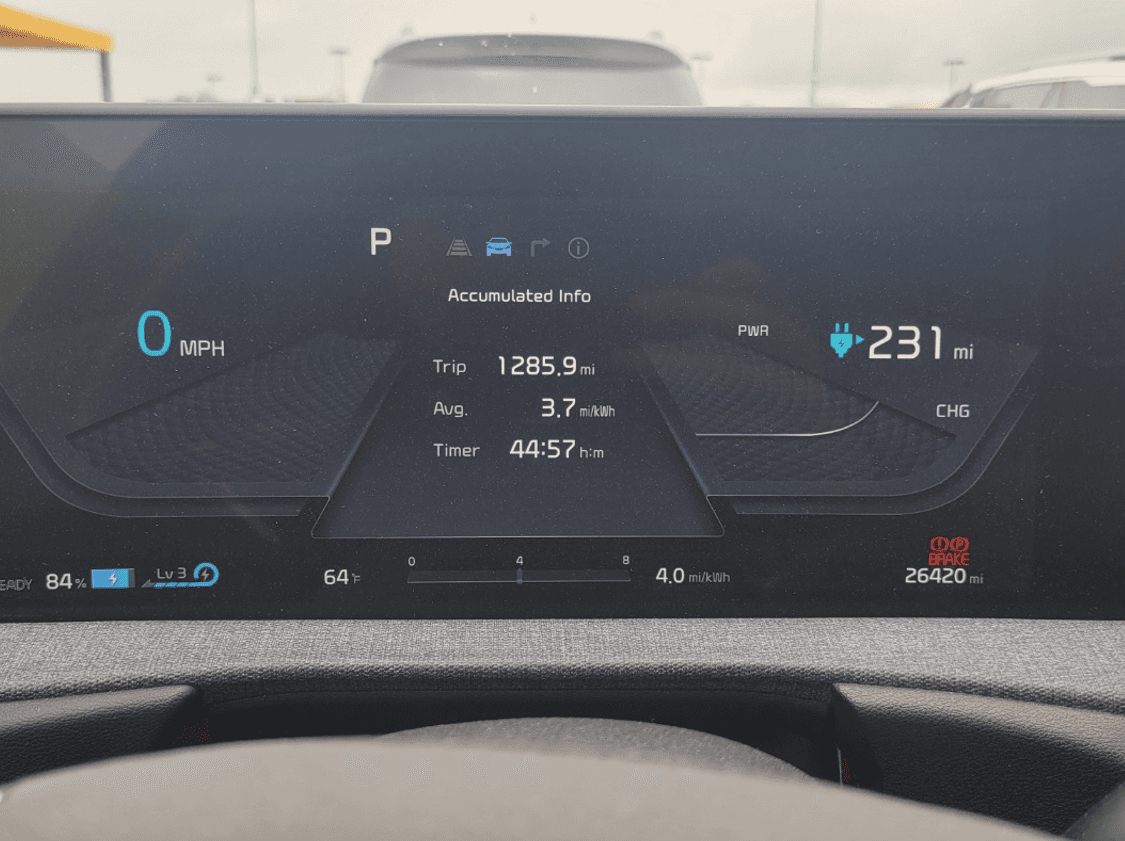

Travelled using EV6 Hyundai
Visited & Documented
37 Charging Stations
in California for Spatial Insights
Conducted
32 EV Driver Interviews & Surveys
for Electric Vehicle User Experience insights
Proposal

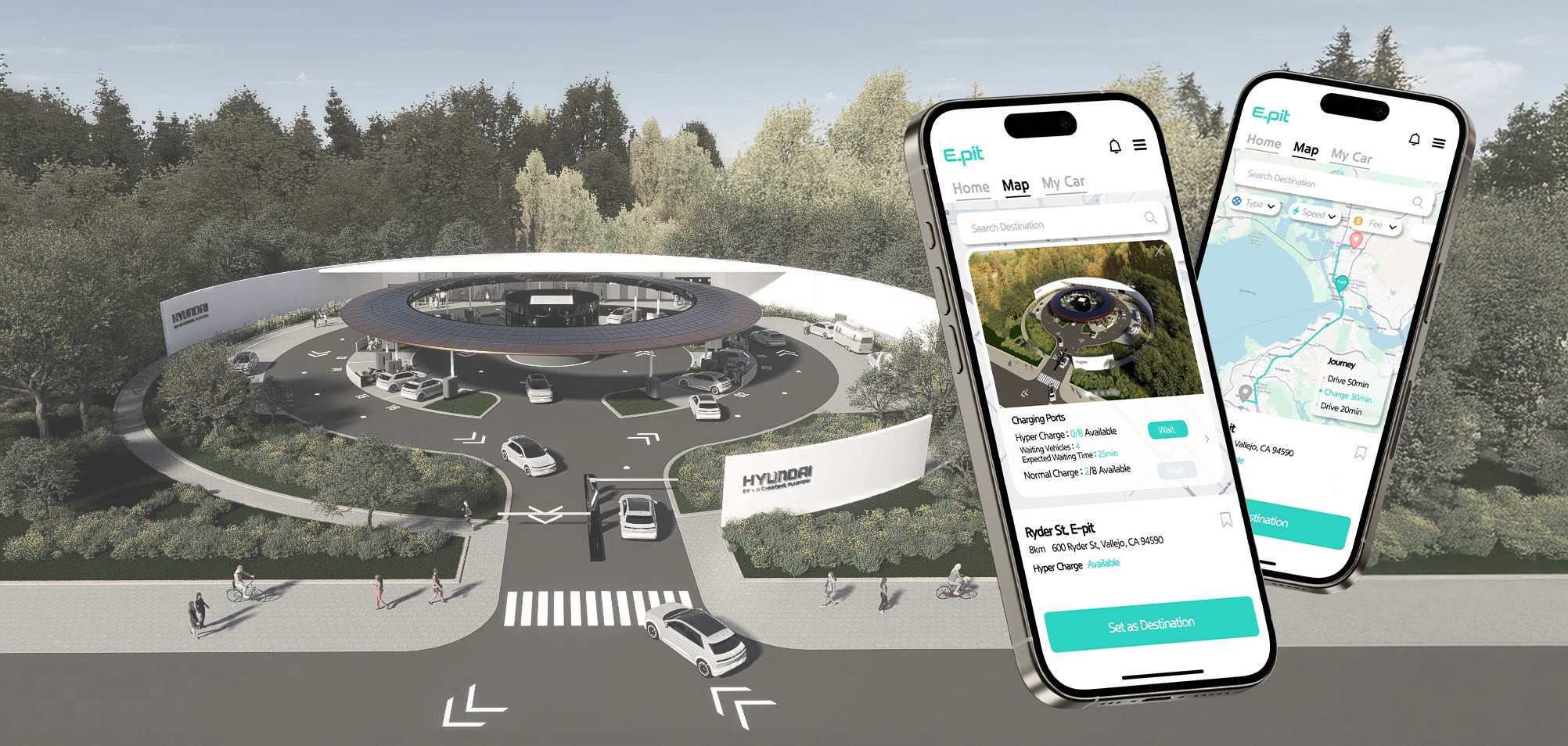

Modified the EV Station Experience UI of Hyundai’s EV Charging App [E-pit]
Integrated proposed EV Stations
Included Waitlist, Amenity, and Route Planning Information.

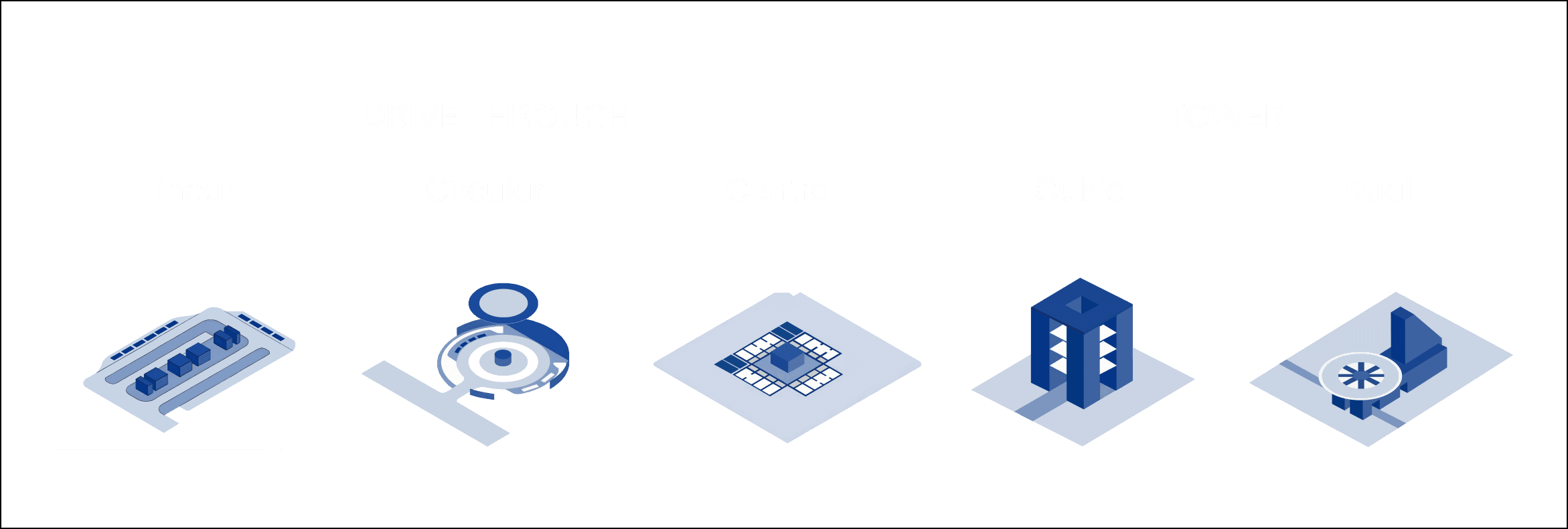

Presented 5 types of EV charging stations
that correspond to EV User pain points and needs.
Problem
Charging = Wasting Time
Lack of Care
[Forced to remain in Vehicle]
Lack of Status Feedback
[Waiting for Open Charging Port]
Solution
Charging = Relaxing Time
Compensation through Service & Interface
Service Amenities
[Vending Machine, Ice Machine, Drinking Foundation, Free Wi-fi, Window Wiper, Vacuum Cleaner]
Vehicle Interface
[Charging Port & Facilities Usage Status]
Service Space
[Entertainment, Rest, Eat, Work, Study]
Background
Project Objective
Identify a Unique Selling Point (USP) that can encompass a North America-specific charging service experience
Research
On-site Research
Taking the perspective of EV drivers, we centered on the interactions with the user and their vehicle with the EV station’s services and spatial aspects. The device aspects were documented but were limited in terms of design development.

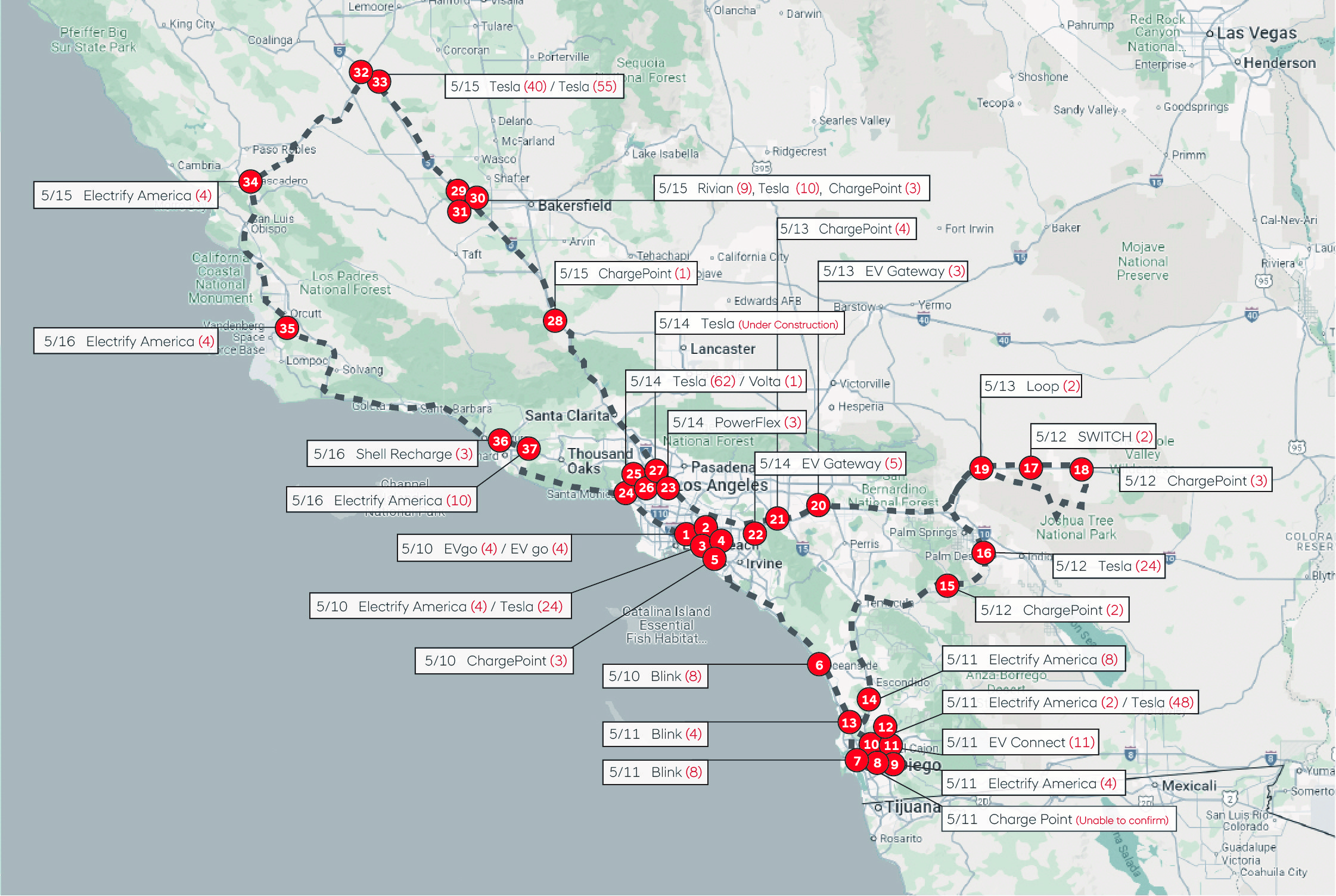

On-site Field Research Plan & Course

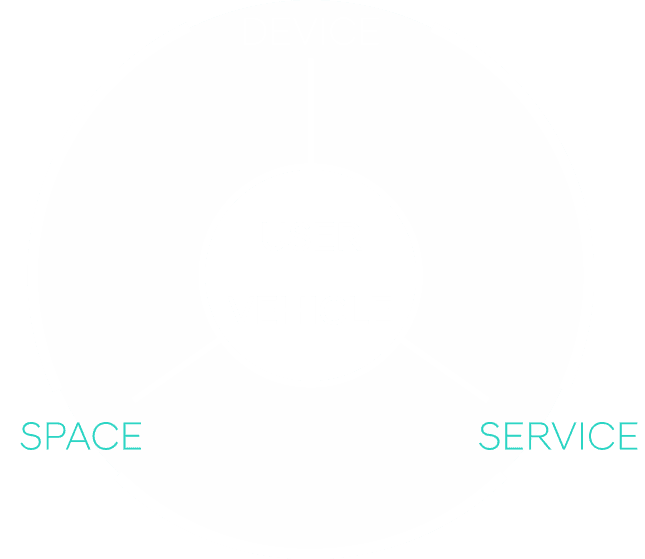

Research Focus

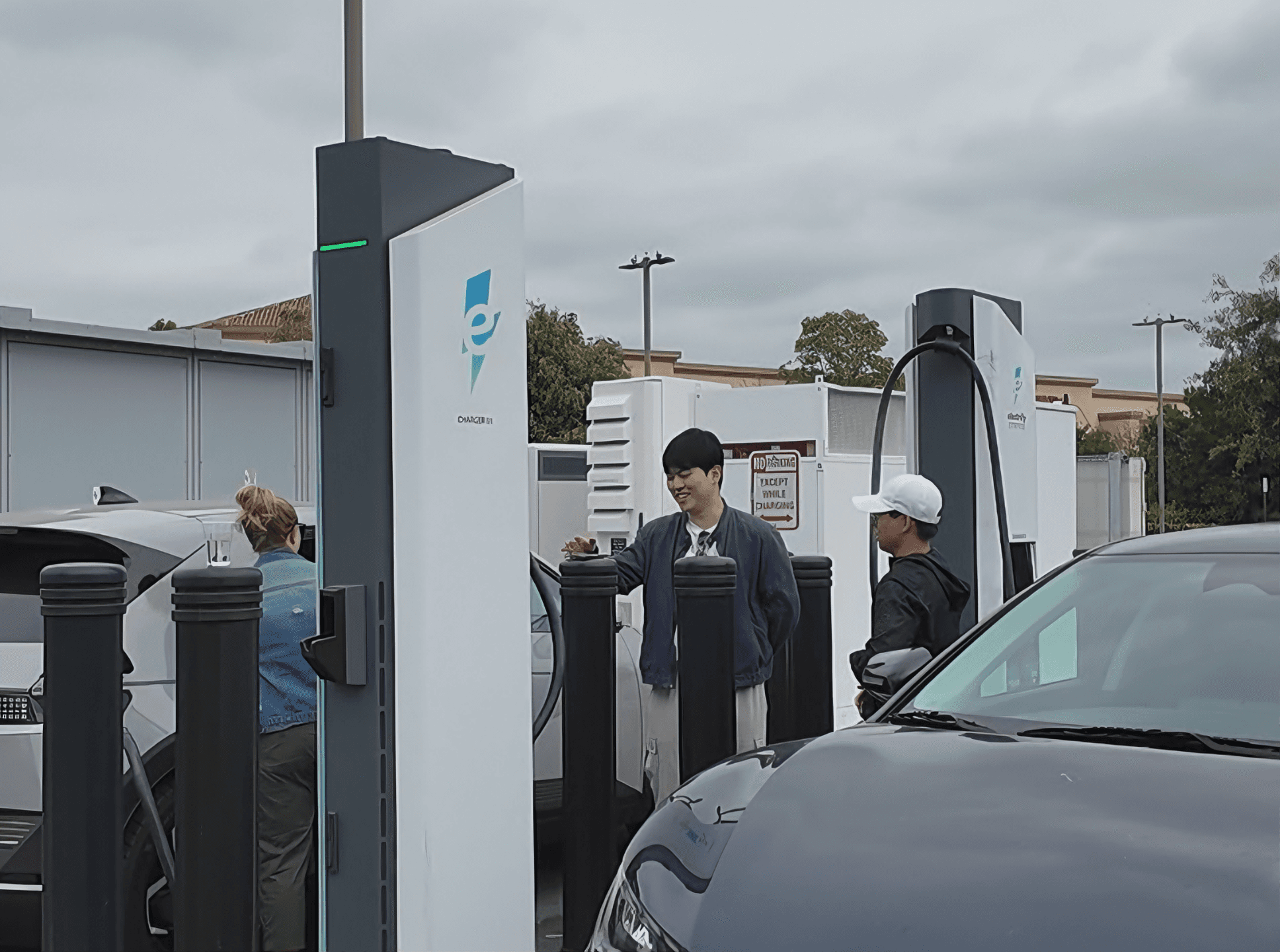

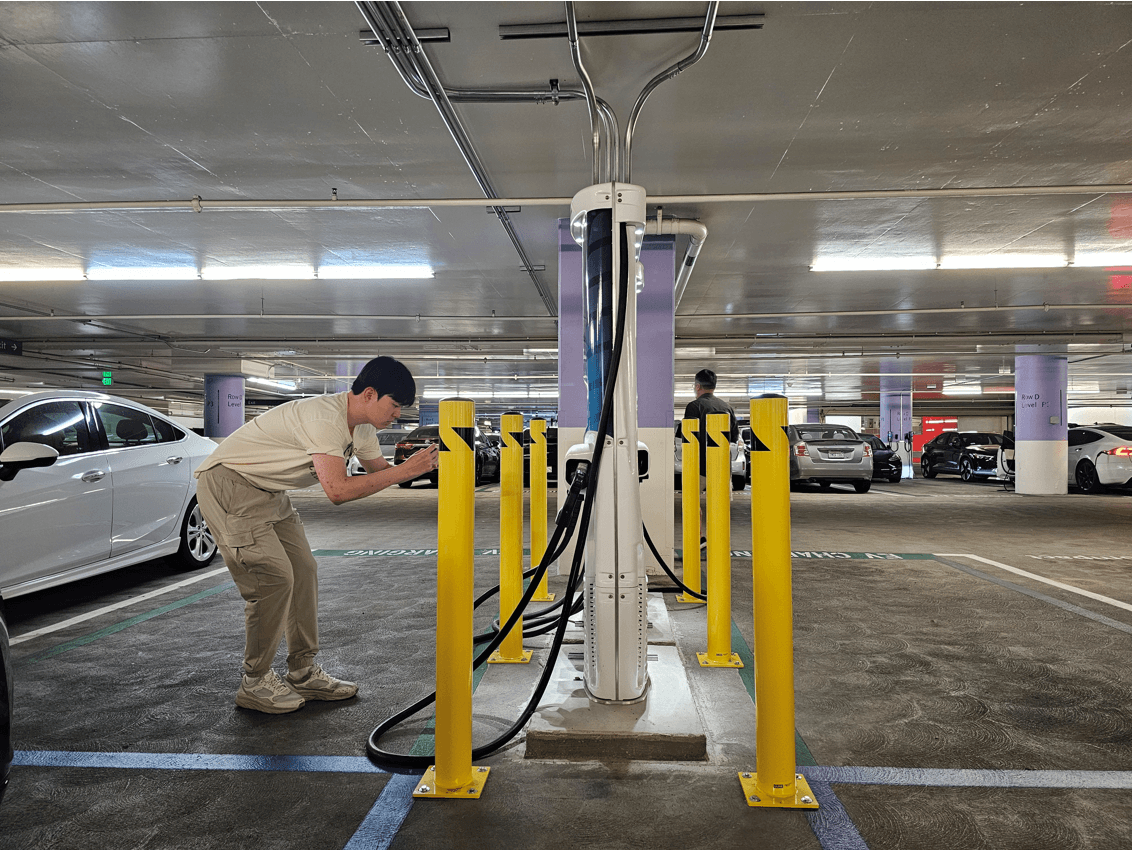

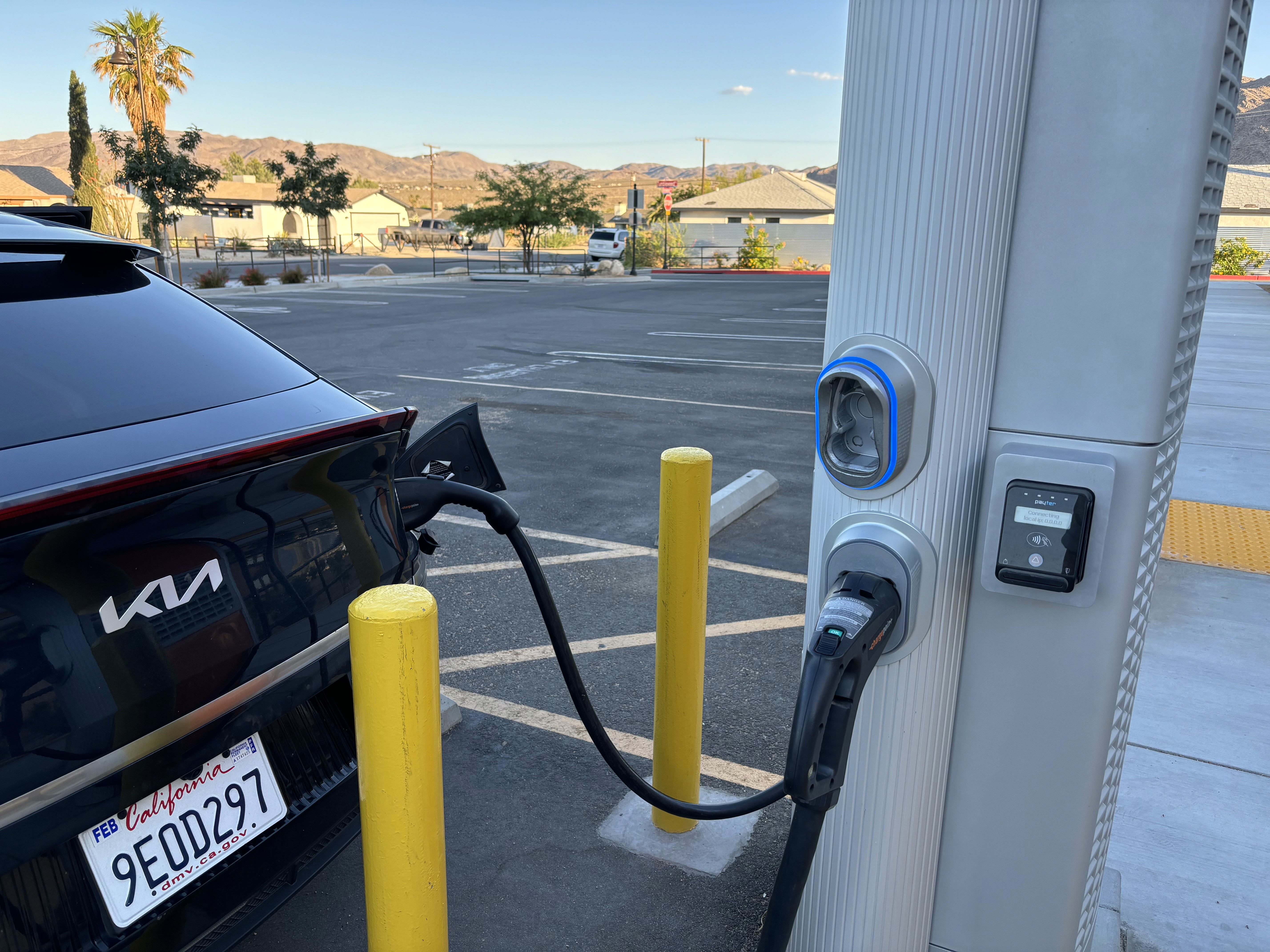

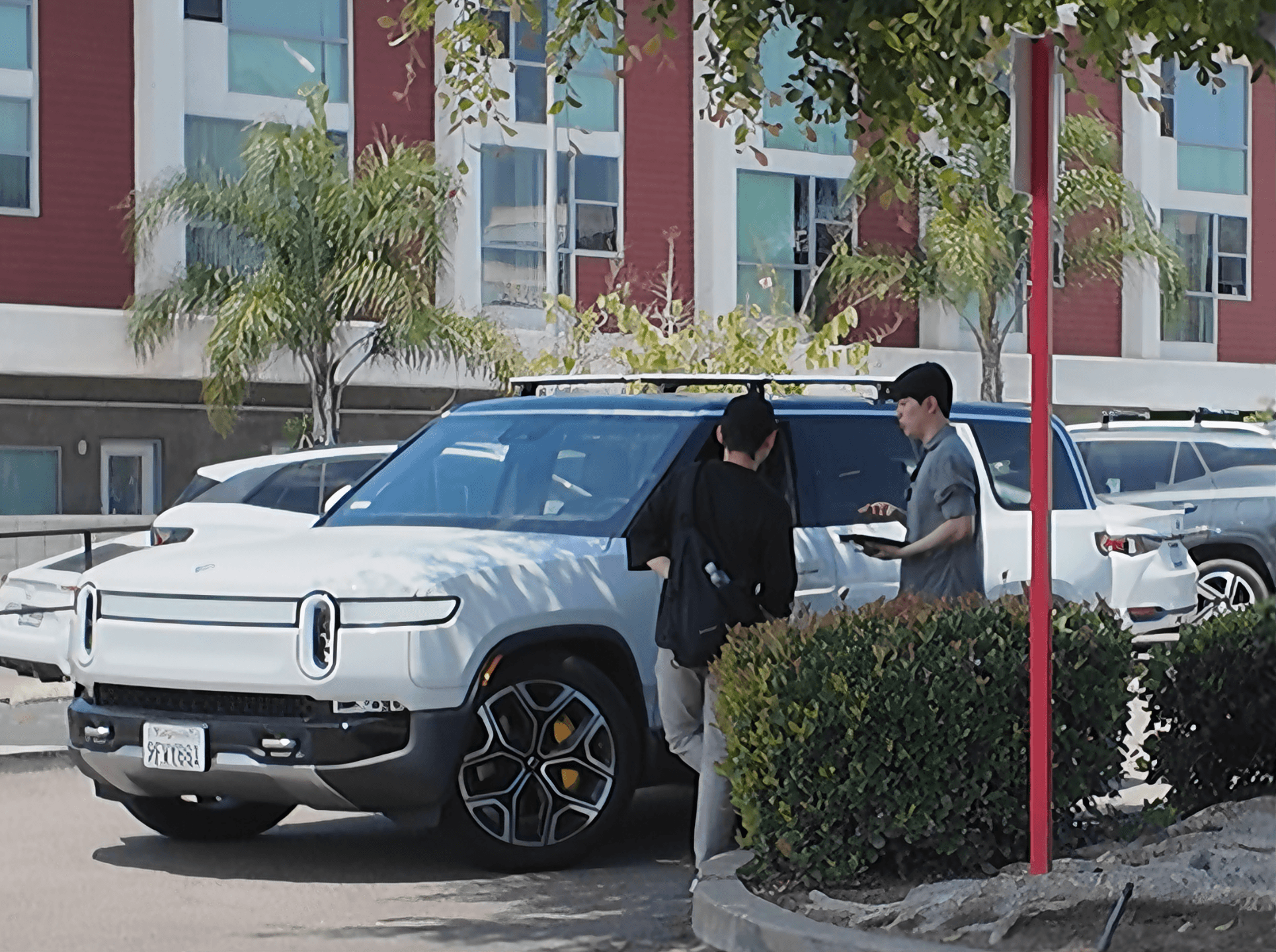

Some photos from our field-research trip!
The 37 Charging Stations our team visited could be divided into 4 categories.
Each had different characteristics in terms of both service and spatial aspects.
Inside Building with Service Space
Extra EV charging cost due to Additional Parking Fee
Need for identifiable and visible signage that allows easier navigation of charging areas

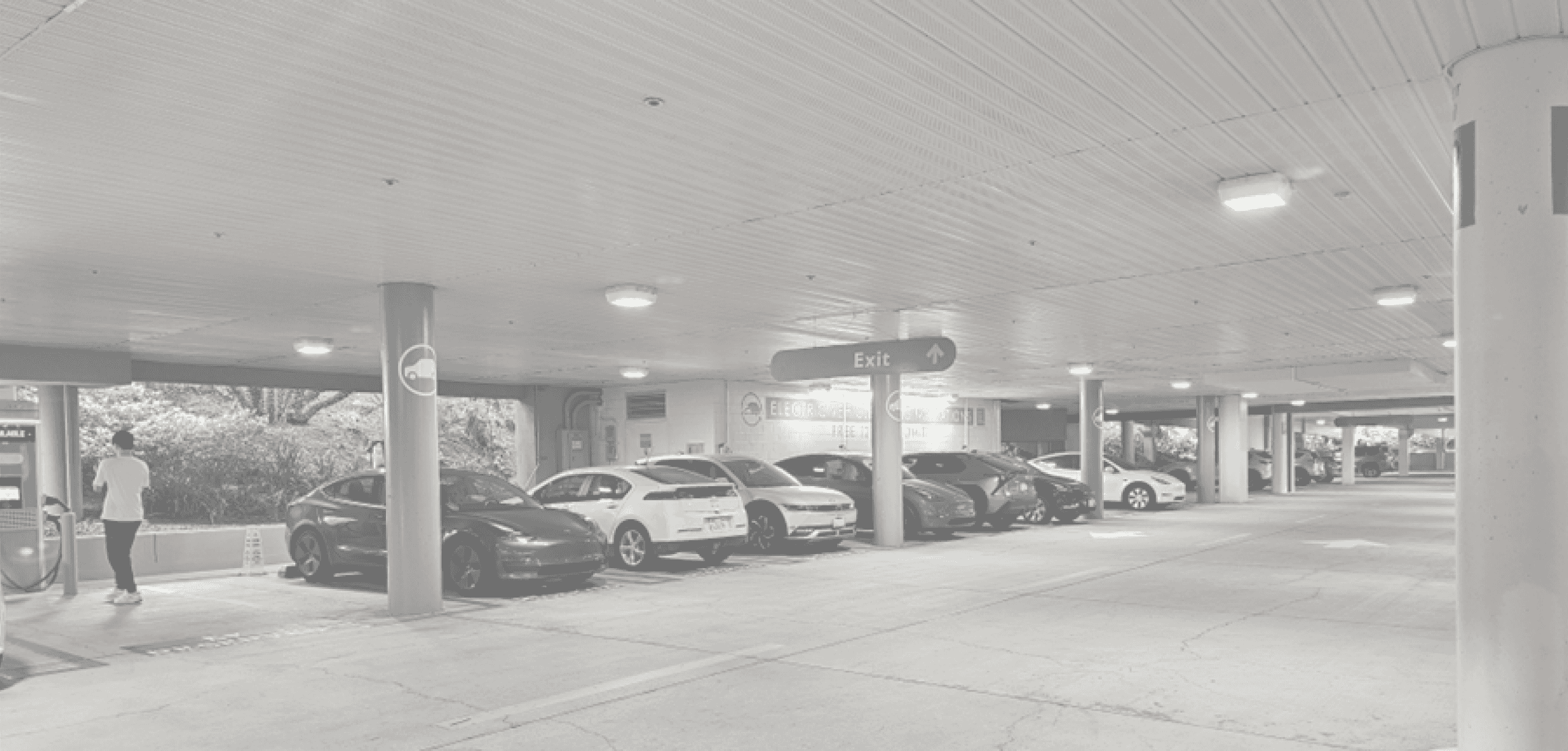

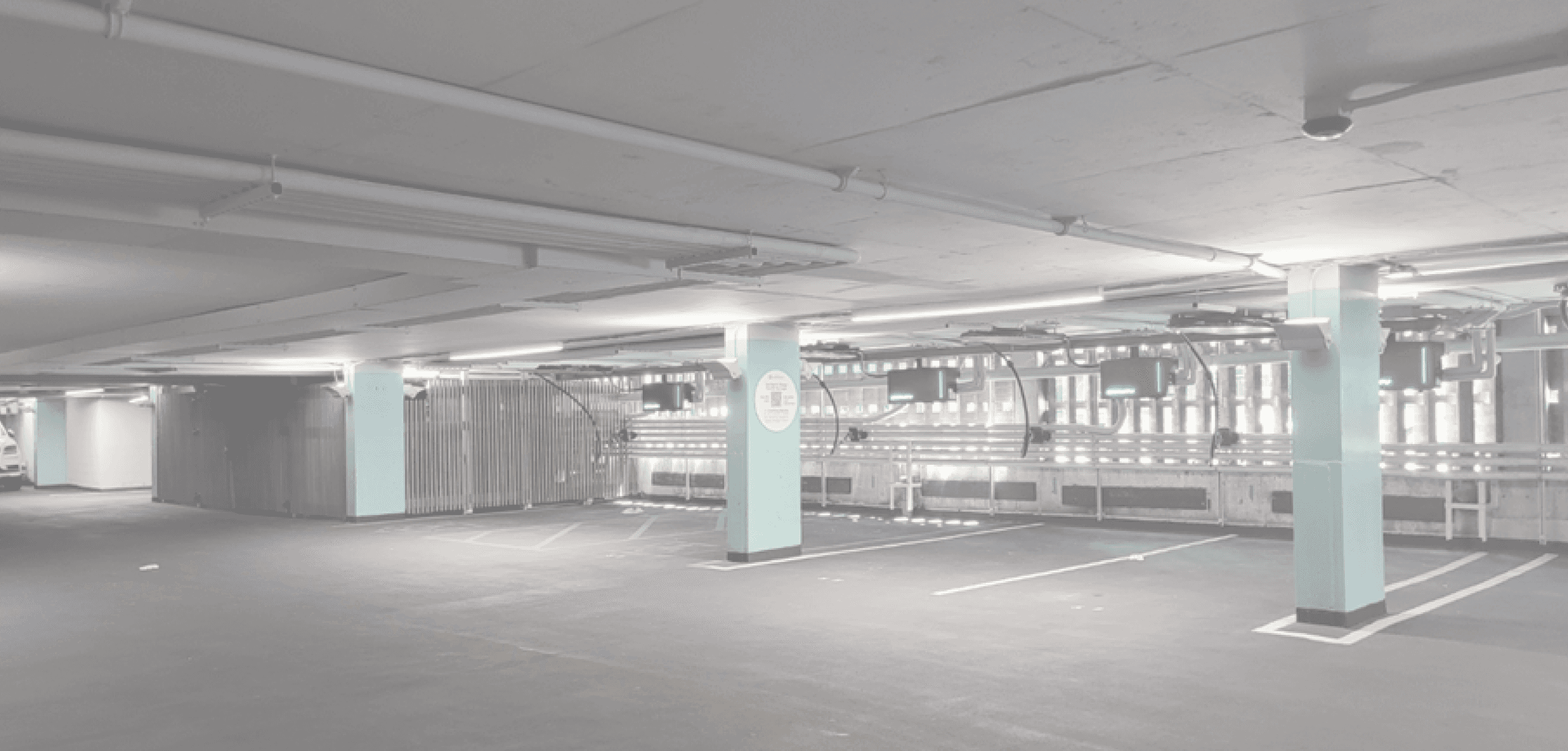

Inside Building without Service Space
Features automated garage doors for security, especially in residential buildings
Adequate for concierge services for easier usage
Outside Building with Service Space
Exclusive membership app for service space access
Sloped floor and paving for waterway to prevent malfunctions of the EV facilities
Outside Building without Service Space
Lacks amenities
(Vending Machine, Restroom, Lounge, Bin)
Potential for community space
Necessity of solar canopy in hot regions for shelter
Research Key Insights

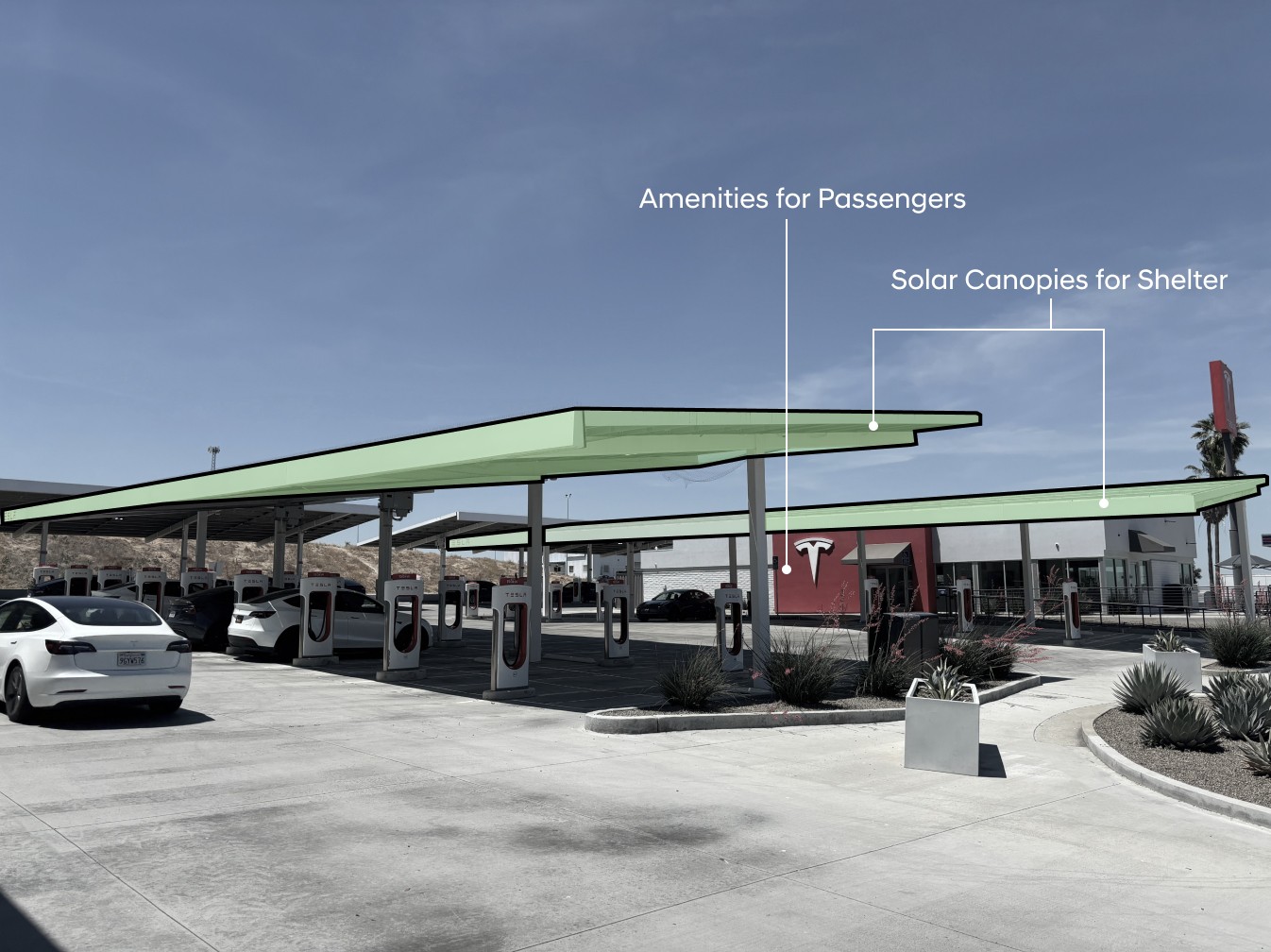

One of the major insights that was gained was the importance of Solar Canopies for shelter and the services provided for the EV stations users. This was most evident in the Kettleman City EV station.

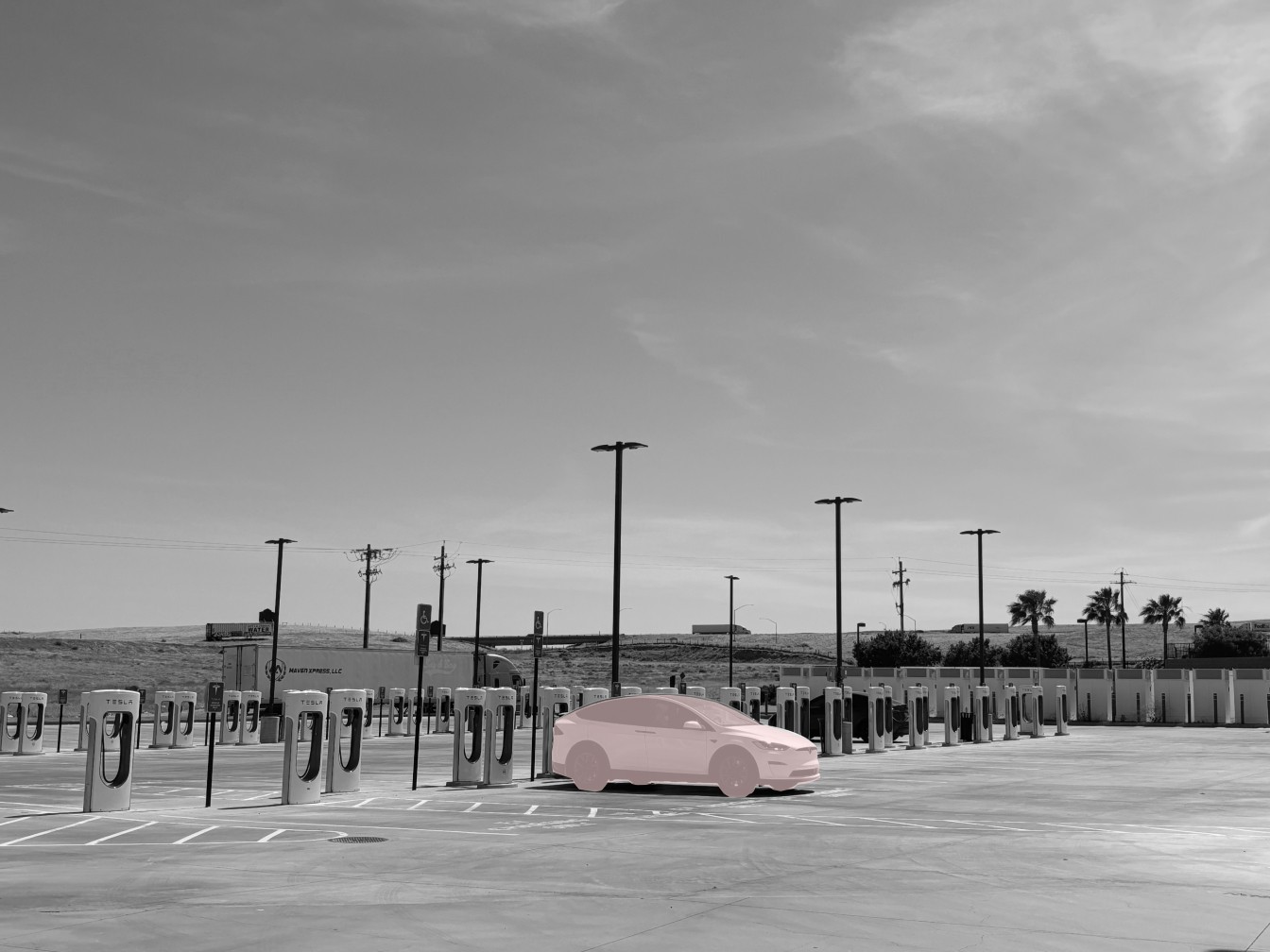

Kettleman City Tesla Supercharger
Without Solar Canopies / Service Spaces
Ports in Use : 1 / 55

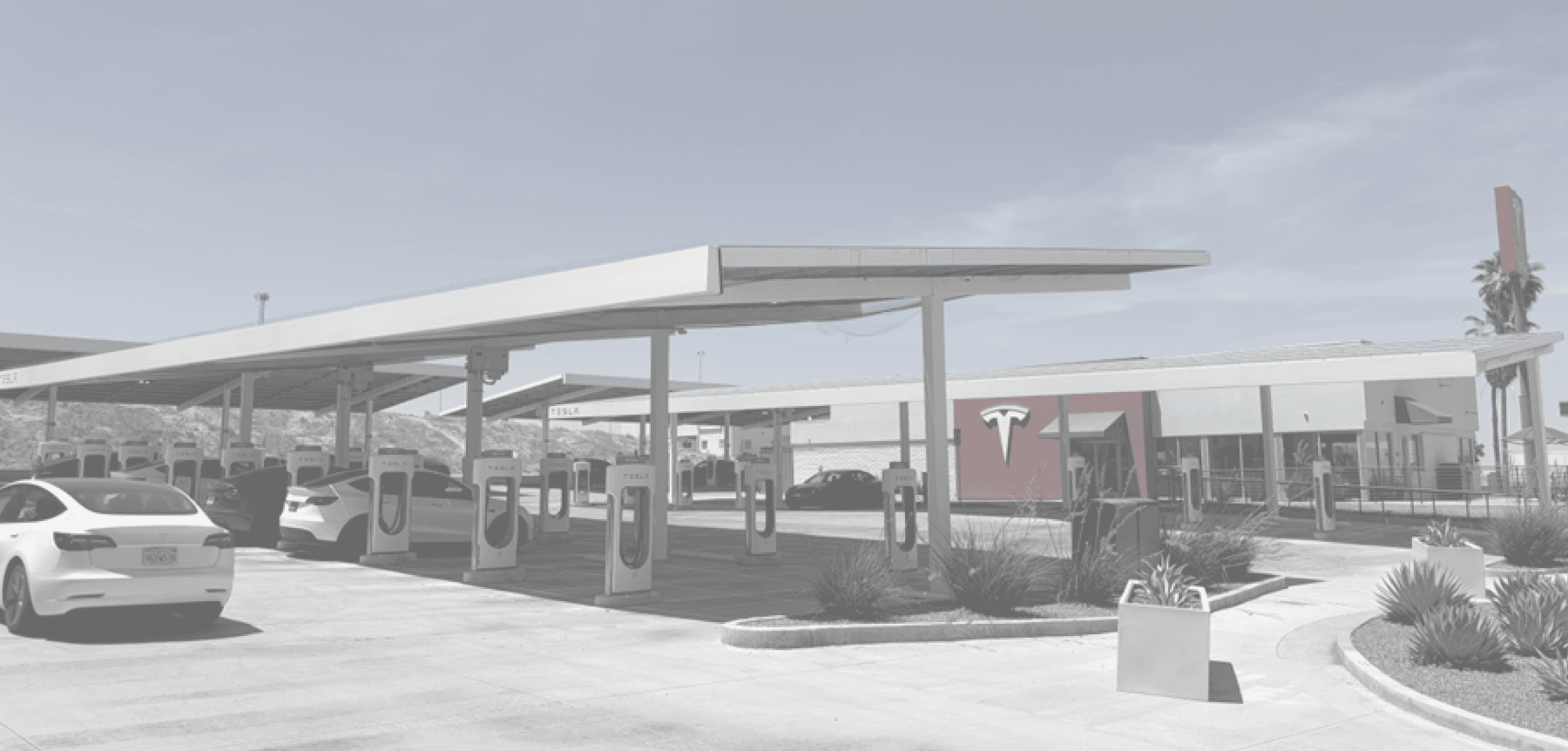

Kettleman City Tesla Lounge Station
With Solar Canopies / Service Spaces
Ports in Use : 15 / 55

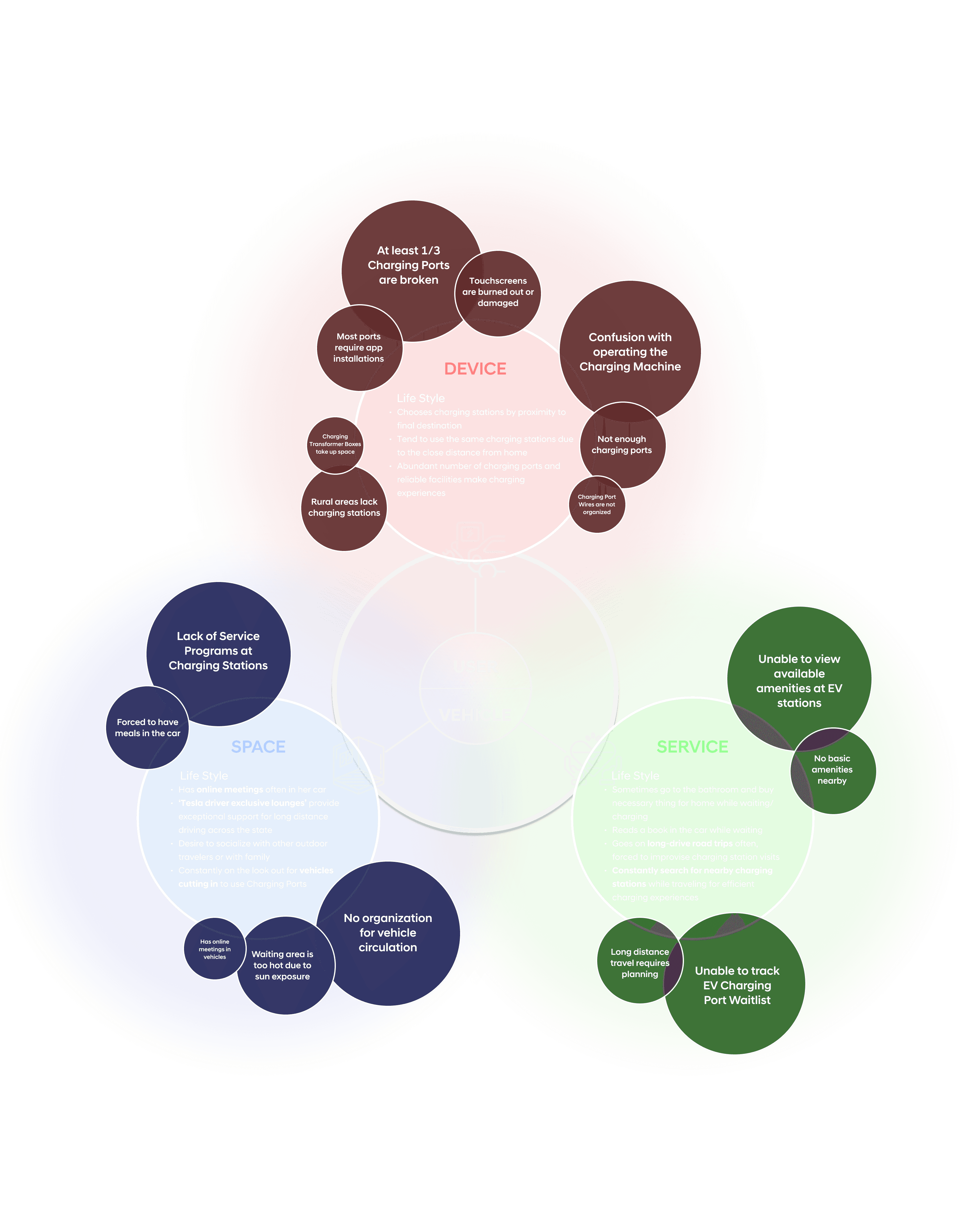

Lifestyles and Pain Points of 3 Persona Types
Putting ourselves in the perspective of EV drivers, we centered on the interactions with the user and their vehicle with the EV station’s services and spatial aspects. We deprioritized the device insights due to technical limitations.

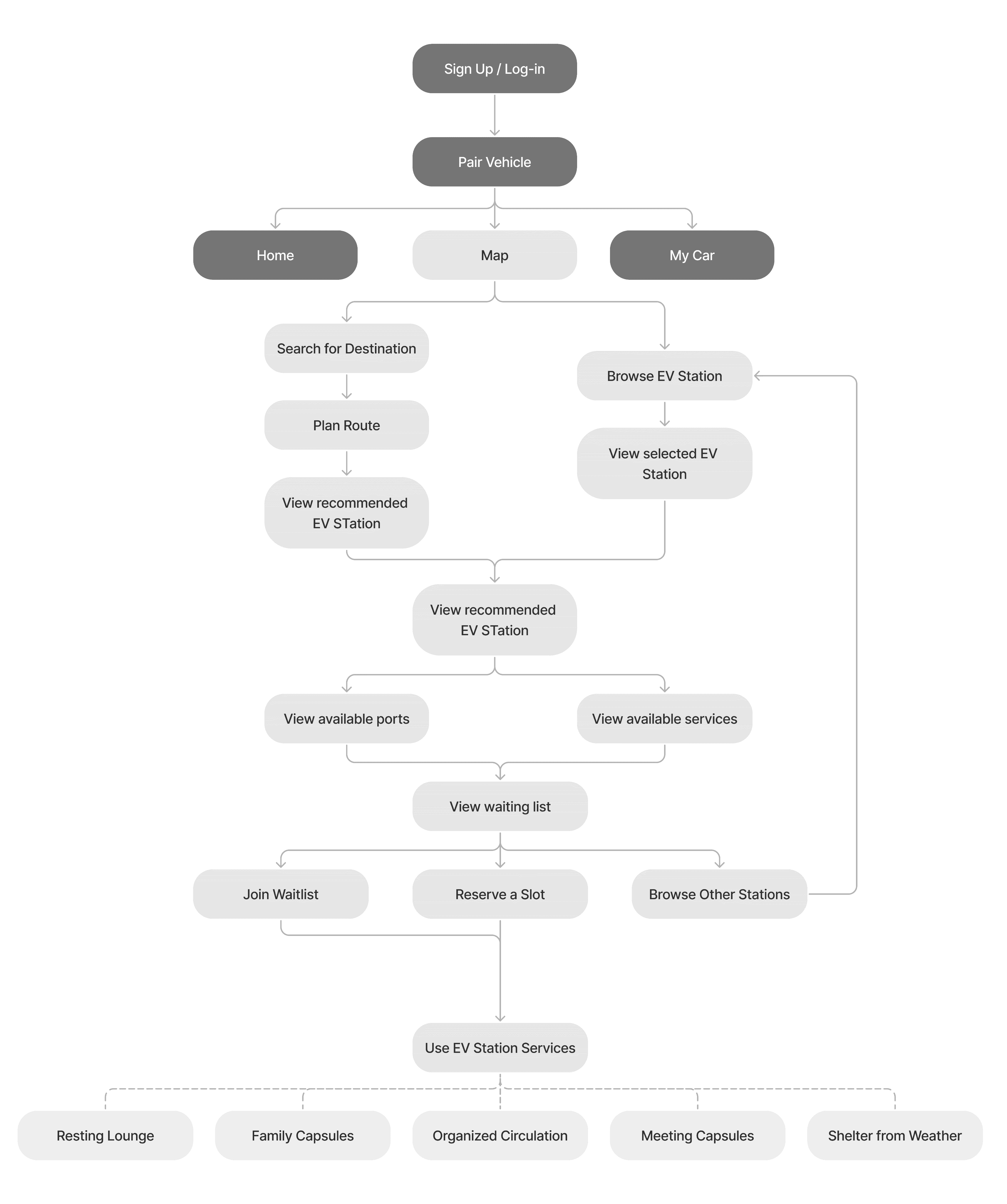

User Flow
User Flow
The overall user flow with EV charging can be divided into 2 parts.
The first part is mainly affected by the App Interface which requires necessary information to locate stations.
The next part is mainly affected by the EV station's spatial aspects, which the EV users will experience once they arrive.
Interface Design
This User Experience Segment is connected with the lack of information regarding the charging station’s status and efficient travel planning
Spatial Design
This User Experience Segment is connected with the lack of service spaces & spatial organization
Design
01 Interface Design
Service Problem
The current [E-pit] app does not provide information of how many vehicles are waiting for certain charging ports, causing long lines to form at stations with insufficient ports. Moreover, users couldn't track the status of amenity usage at the station they are headed.
These problems could be solved through interface modifications.
Unable to track Vehicles Waiting for Open Charging Slots
Difficulty in Planning Charging Station Usage during Long Trips
Unable to track Amenities or Program Usage Status at Charging Stations
Visual Design Guidelines
Color
I followed the color scheme of the original E-pit Brand of HYUNDAI Motor Group for visual consistency.
Typography
I followed the font of the original E-pit app interface of HYUNDAI Motor Group for visual consistency.
Interface Design Outcome
Journey Planning & EV Station Recommendation
Users can receive recommendations of EV Stations that best match their journey as well as view the whole duration.

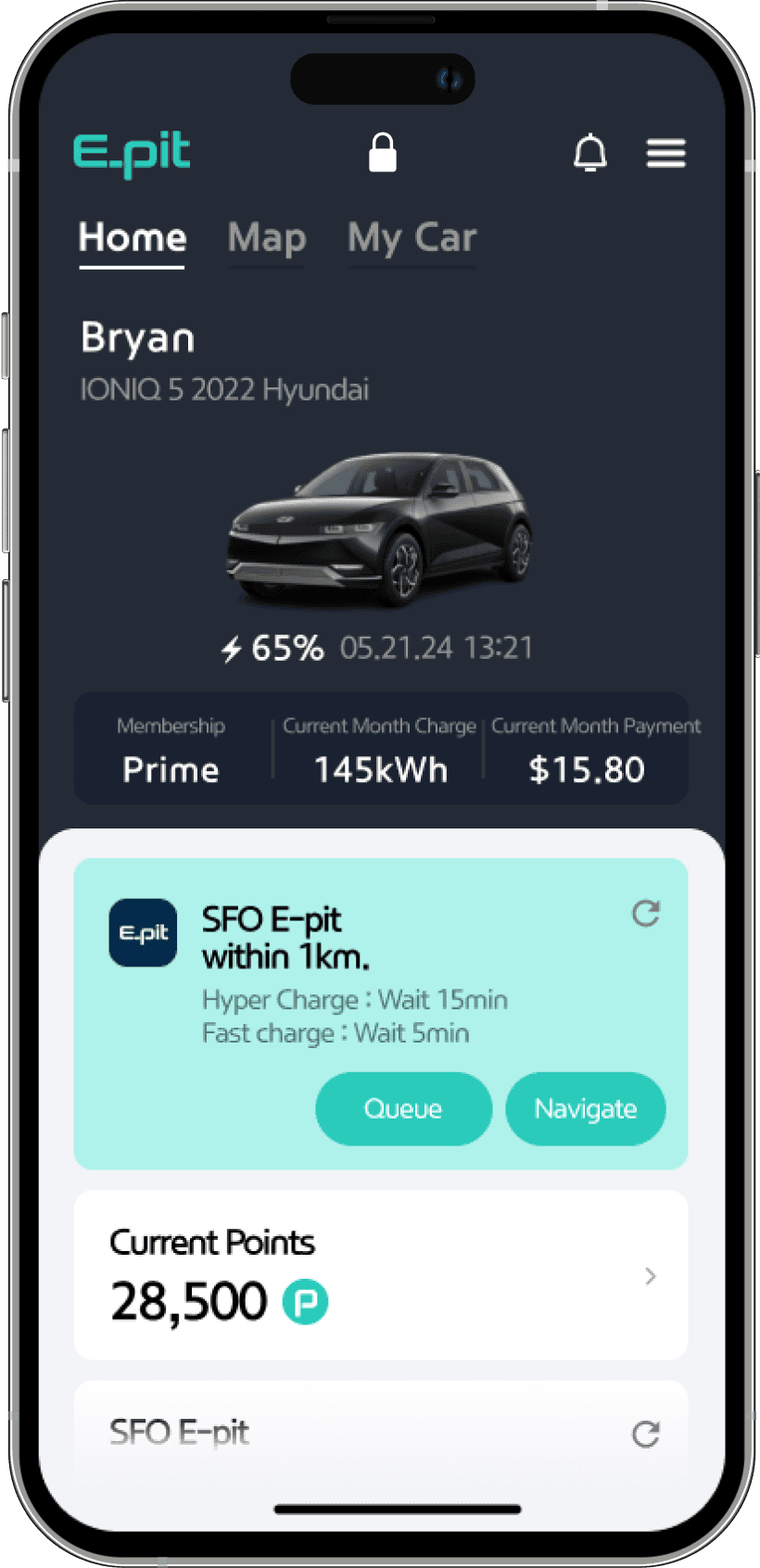

Home (Recreated from Existing UI)
Map - Journey Planning
Map - EV Station Specification

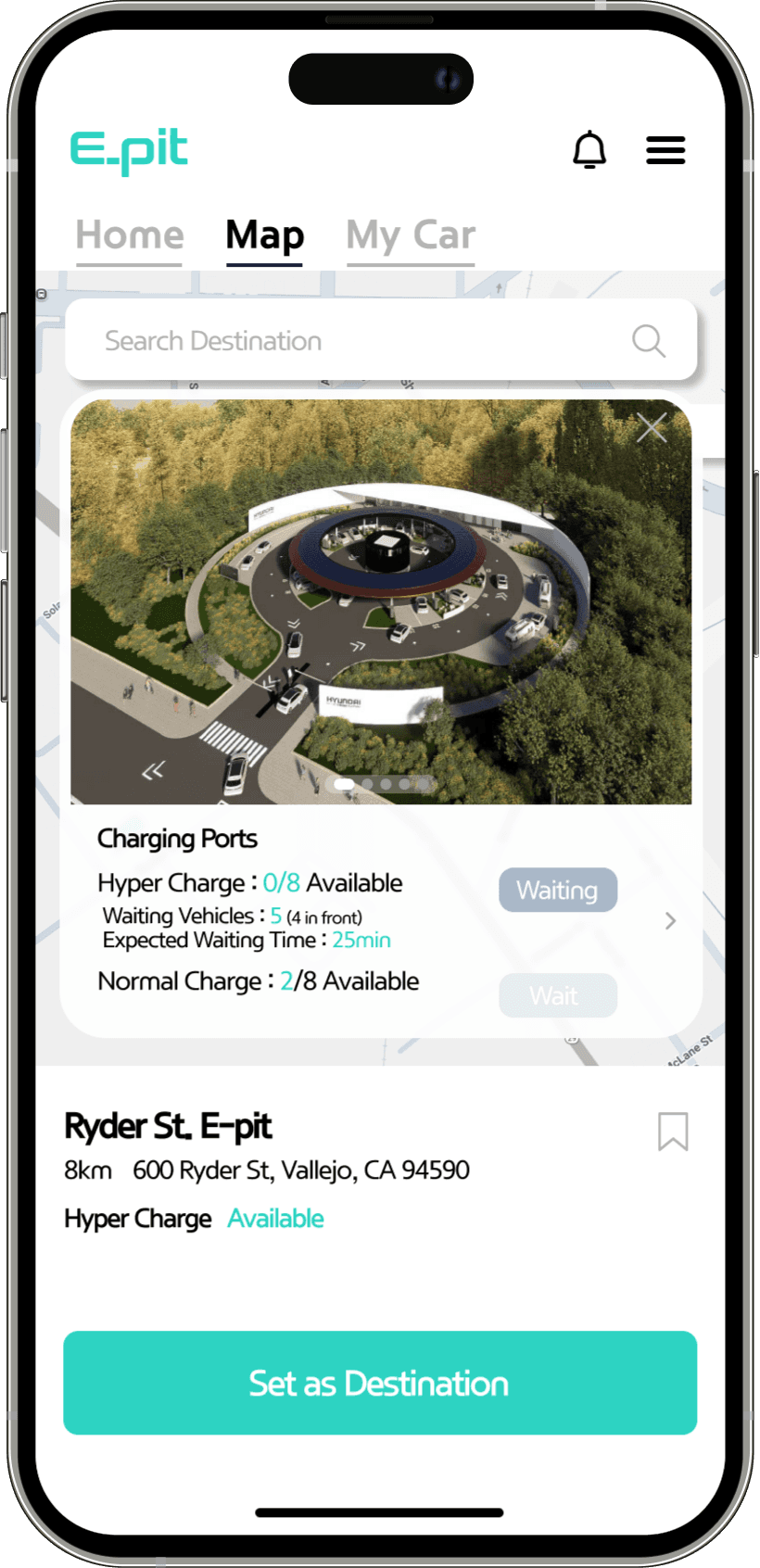

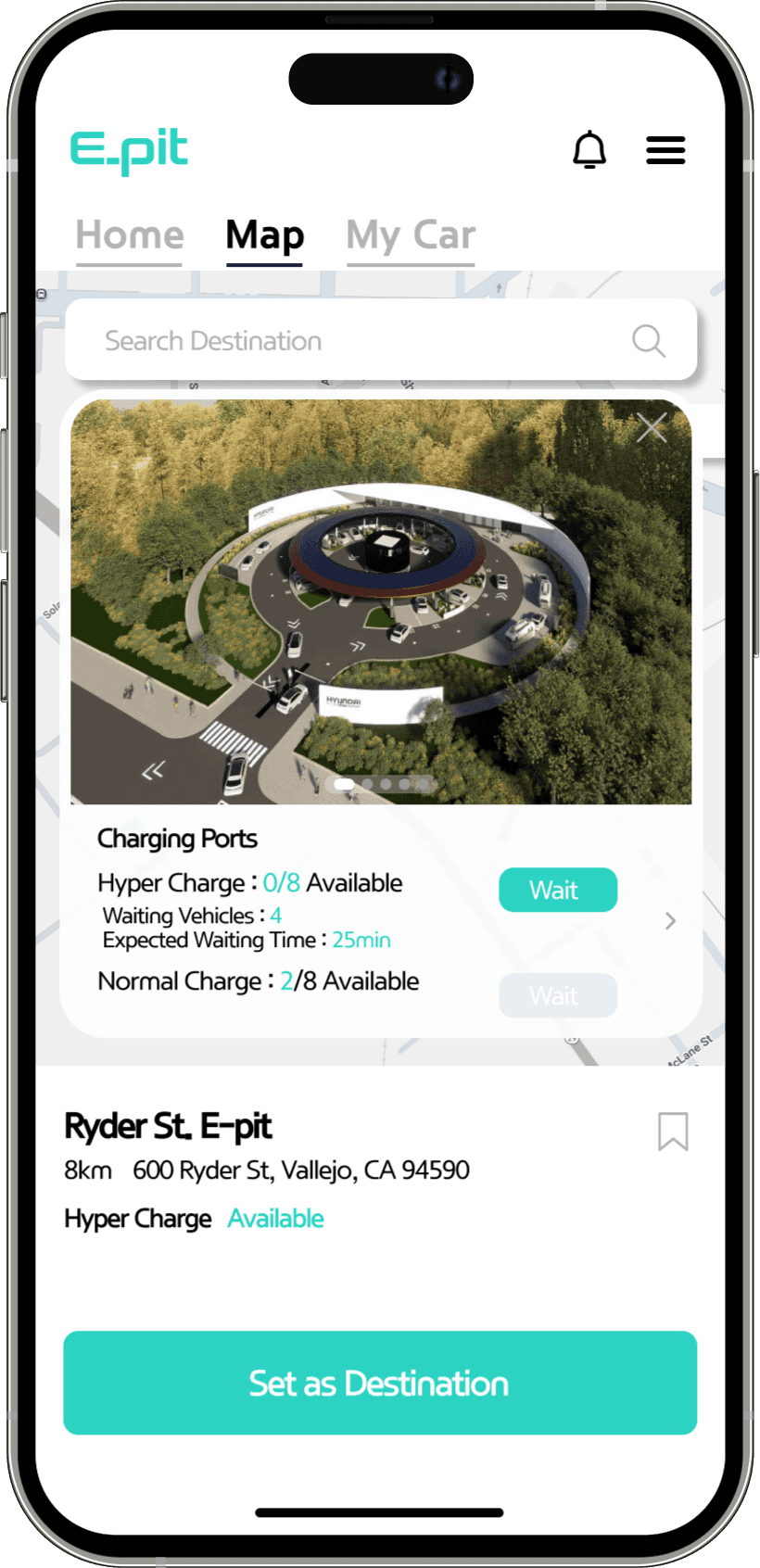

EV Station Waitlist Information
Users can view how many cars are waiting for each type of Charging Mode and wait in line or locate other stations.
View Waitlist
Join the Waitlist for Charging Port Use
Set as Destination

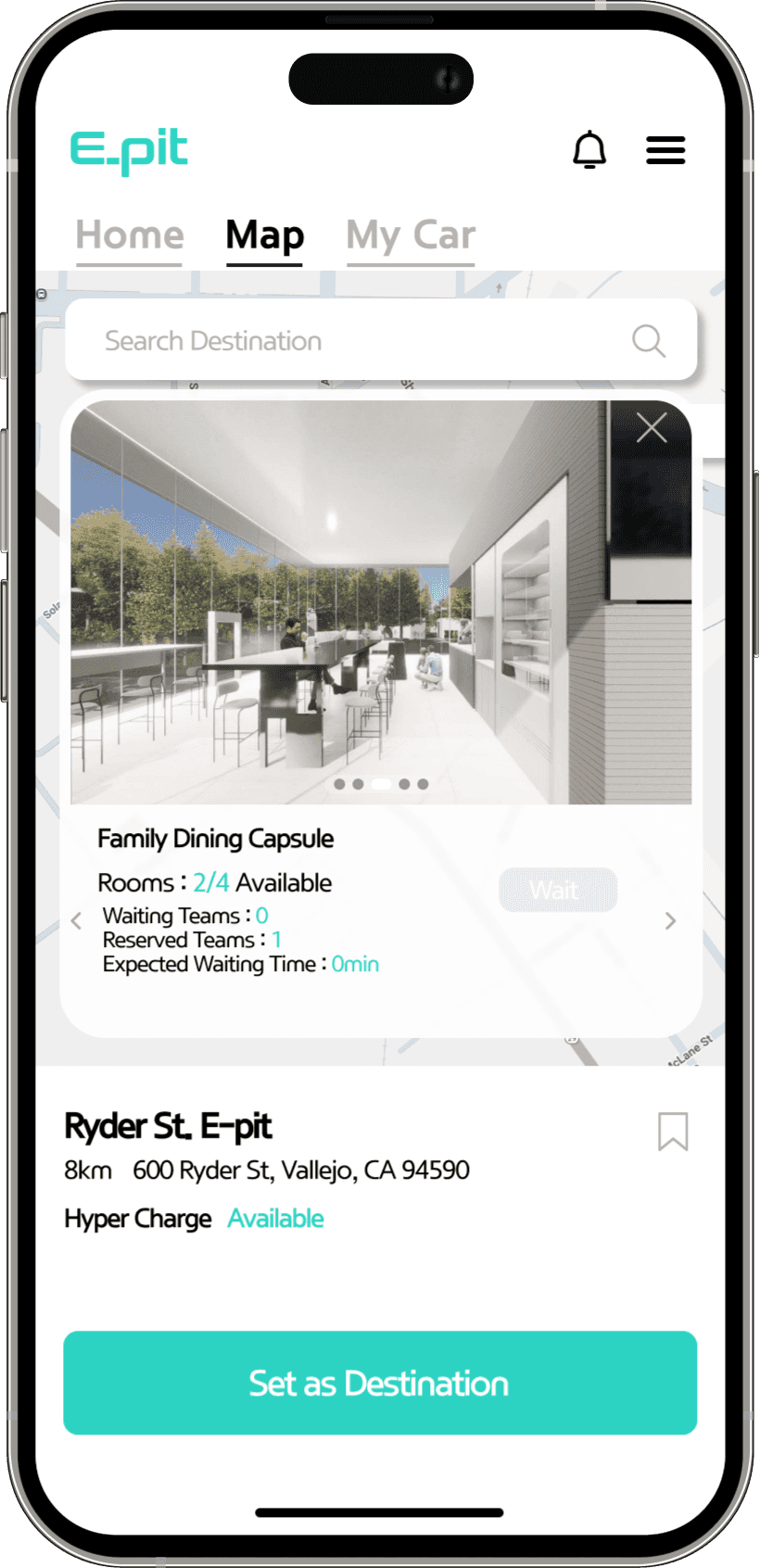

EV Station Amenity Service Options & Waitlist Information
Users can view what amenities & services the chosen EV Station provides and the amount of teams waiting to use them.
Select EV Station
Browse Meeting Room & Waitlist
Browse Picnic Room & Waitlist
02 Spatial Design
The most evident problems in terms of space was the lack of shelter, lack of circulation organization, and the lack of service amenities. These problems could be applied in terms of architectural design, by providing canopies that protect users, designating waiting lanes and spaces, separating vehicle & pedestrian lanes, and providing necessary service facilities.
Spatial Problems
Lack of Shelter for Weather Conditions
Lack of Vehicle & Pedestrian Circulation Organization
Lack of Service Amenities & Programs at Charging Stations
Spatial Solutions
Canopy for Shade
Waiting Lanes
+
Circular Vehicle Circulation
Provide Service & Amenity Facilities
Spatial Design Outcome

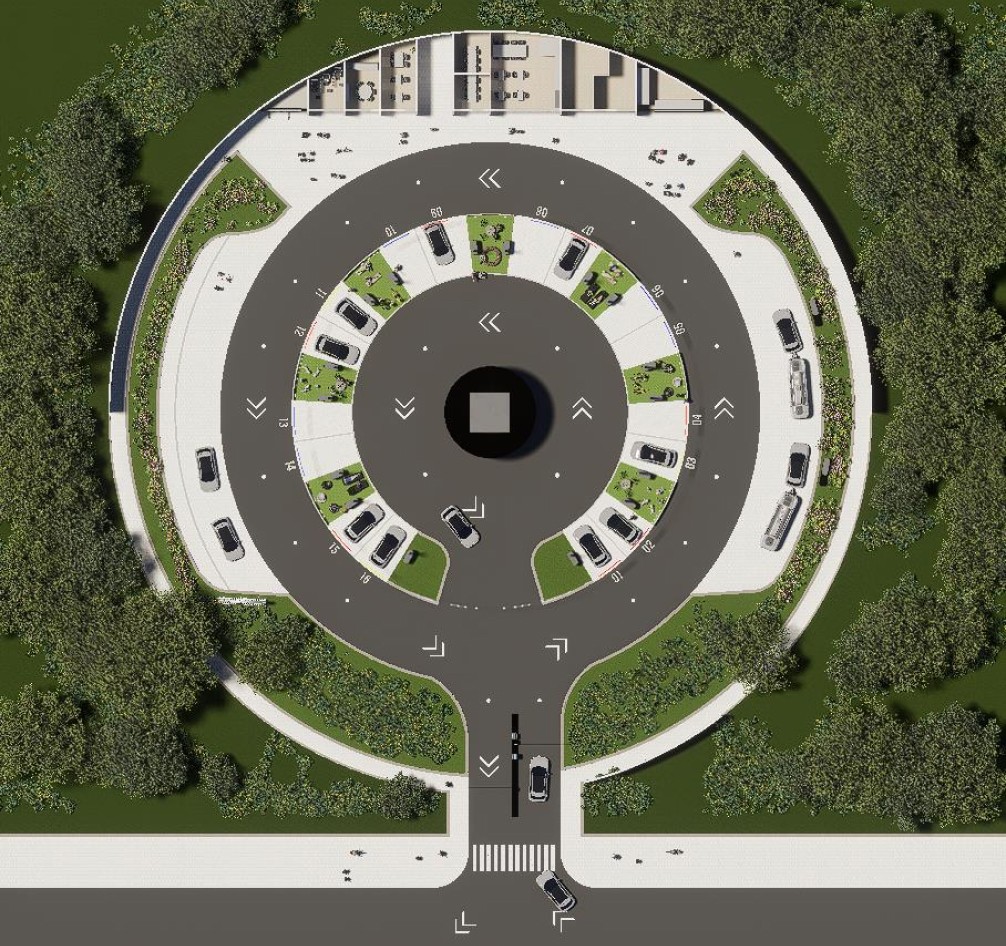

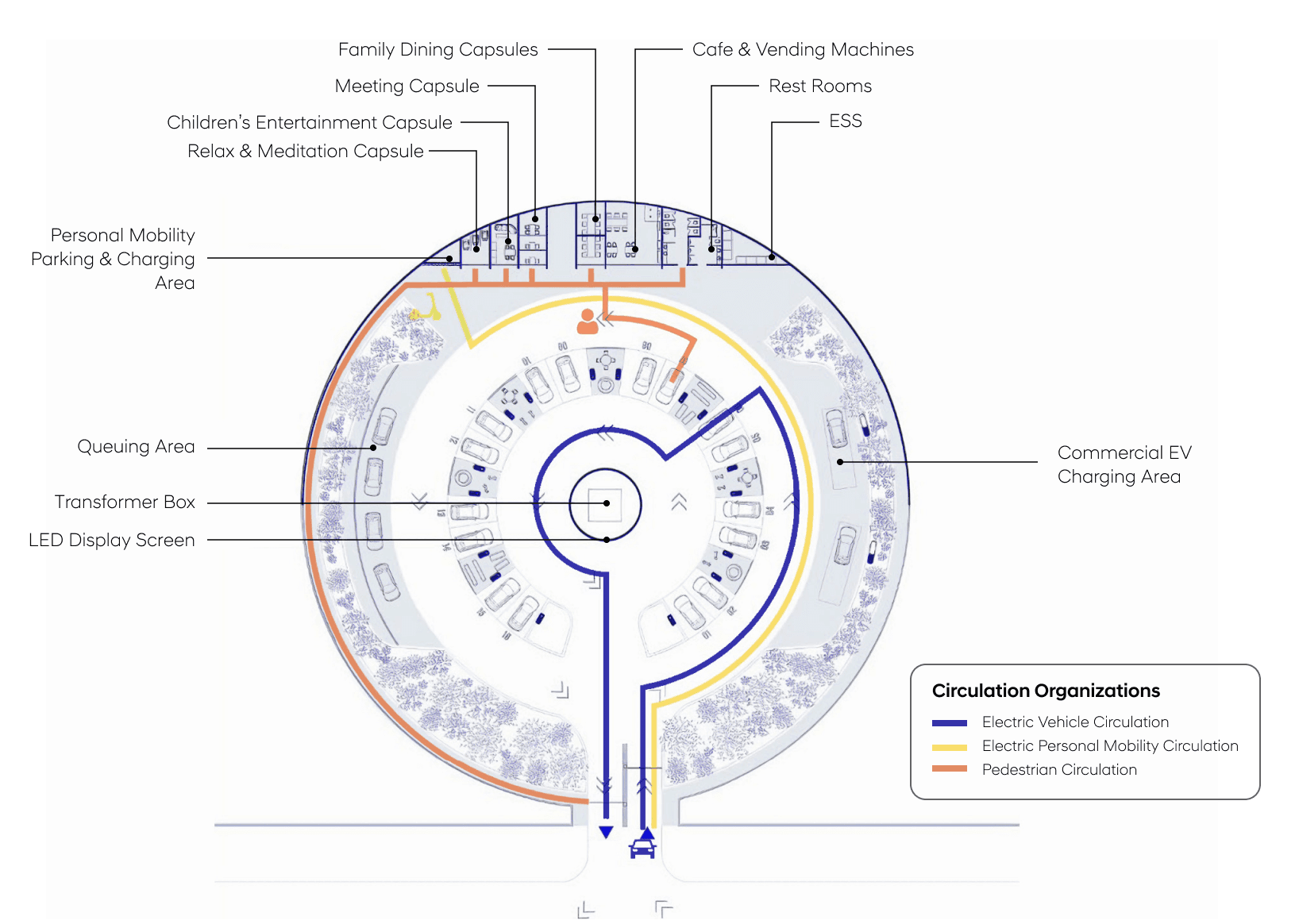

EV Station Plan Design
Our main EV Station Proposal out of the 5 proposed concepts features organized and divided circulation management for EVs, Personal Mobilities, and Pedestrians within the circular plan design.
The Station also includes multiple amenities and queuing areas for idle EVs waiting for their turn at charging ports.

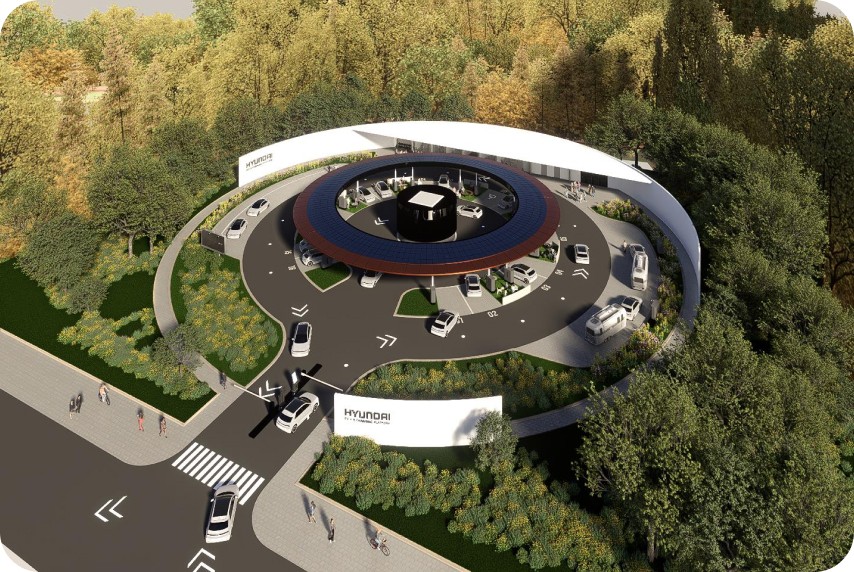

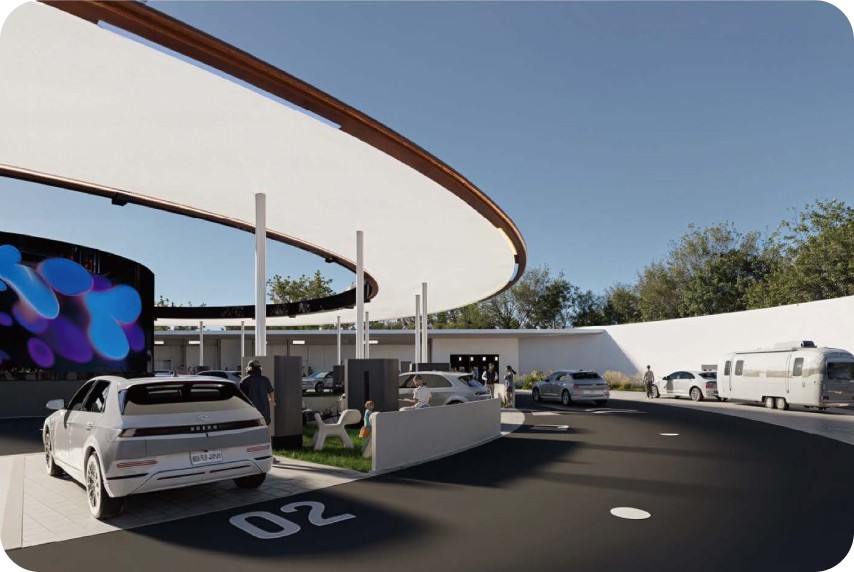

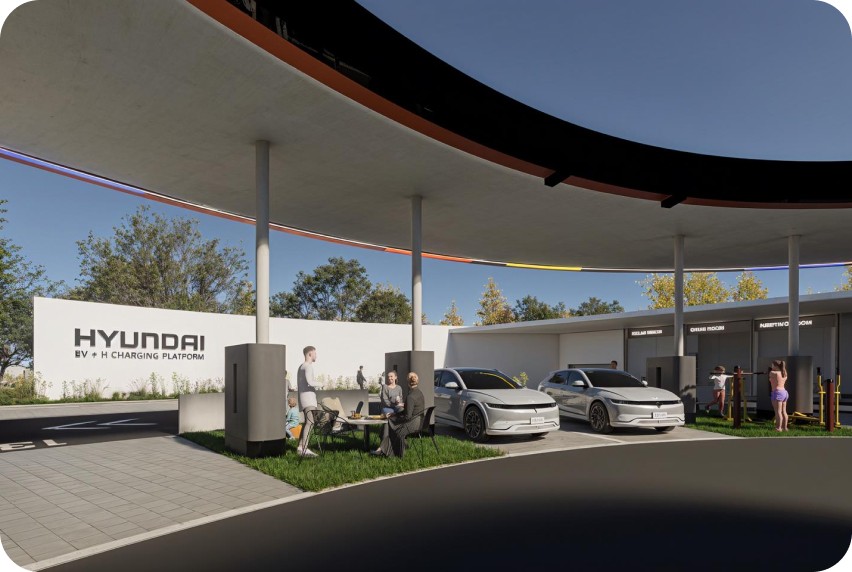

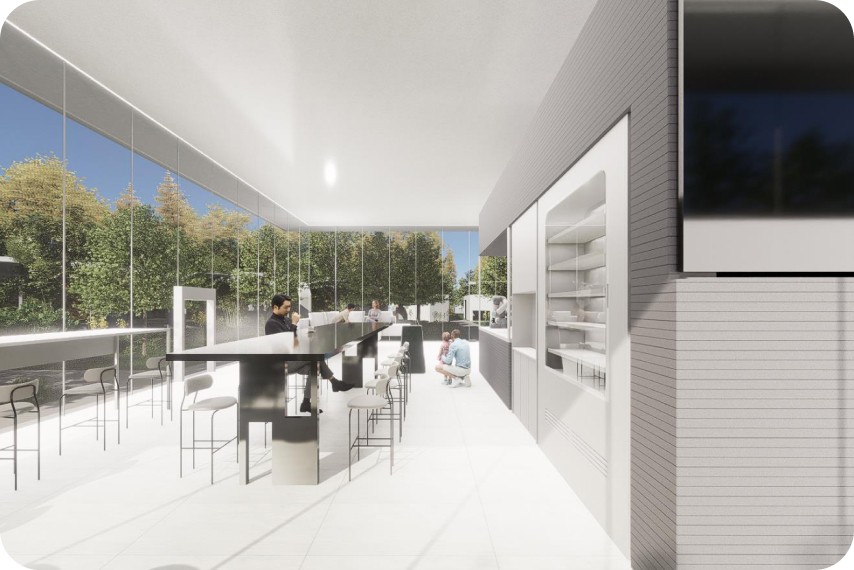

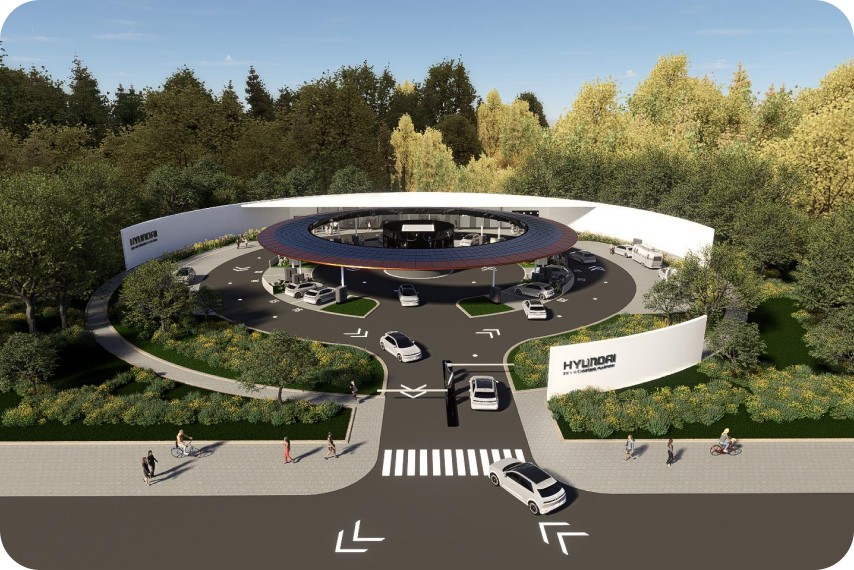

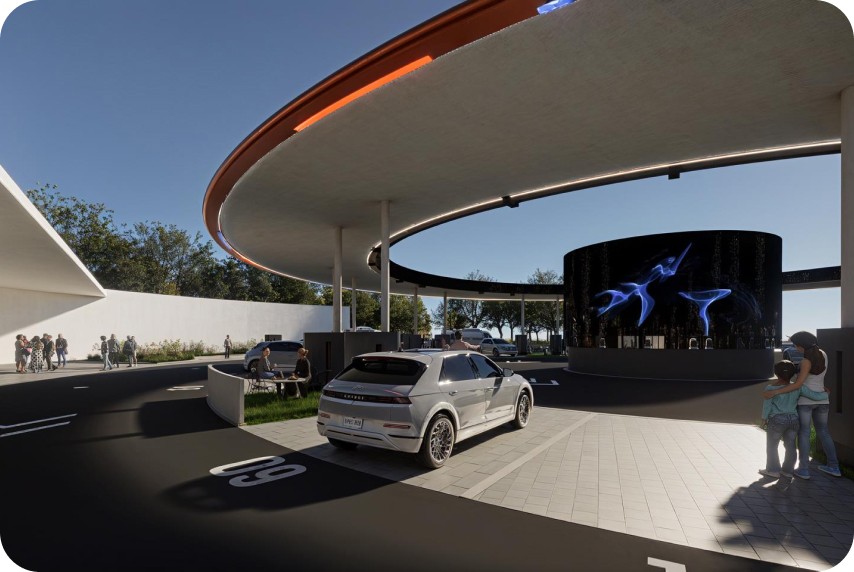

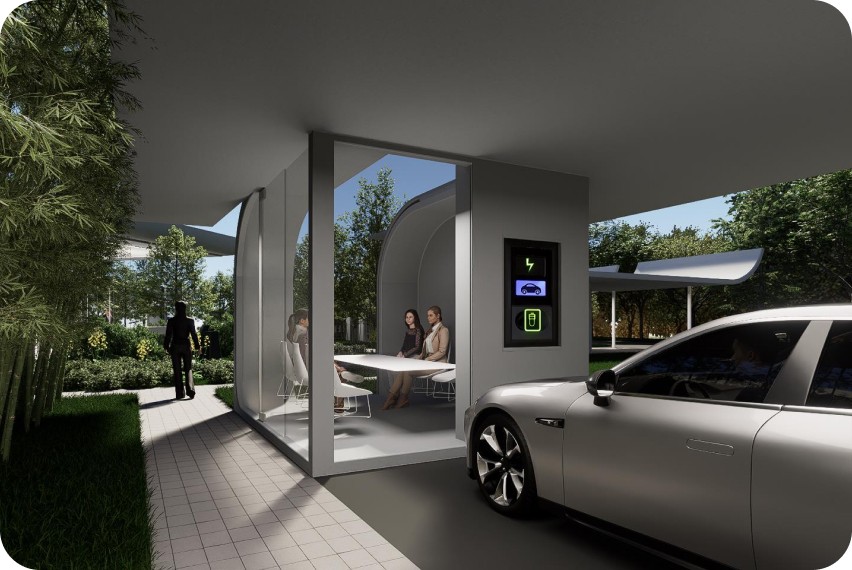

EV Station Spatial Design
Concept render images for the main proposal of HYUNDAI’s EV Stations for North America.
They correspond to the pain points and needs of EV users and their charging experience.
Reflections
Takeaways!
User Experience Research is the basis of all design. As I look back at the 5 years of architectural undergraduate studies, I realize that everything I designed has been directly or indirectly connected to the inhabitants, a.k.a Users.
Conducting in-depth on-site research across California has taught me the significance of analyzing user feedback and how it can impact business projects on a large scale.
Solutions to User Constraints can come in various forms. Architecture, Interfaces, Physical Products, Digital Products etc. It is not the medium that matters. It is how effective the solution is to the initial problem defined.
